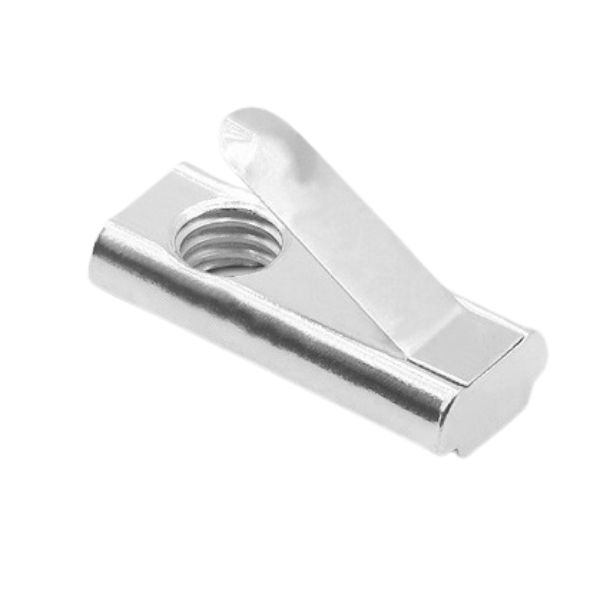

Spring Nuts are designed to be inserted into T-slots on aluminum extrusions, providing a secure and adjustable connection point. They typically consist of a cylindrical body with internal threading and a spring leaf mechanism on the rear side. The spring leaf helps to keep the nut in place once inserted, ensuring a secure lock within the slot.
Material and Surface Treatment

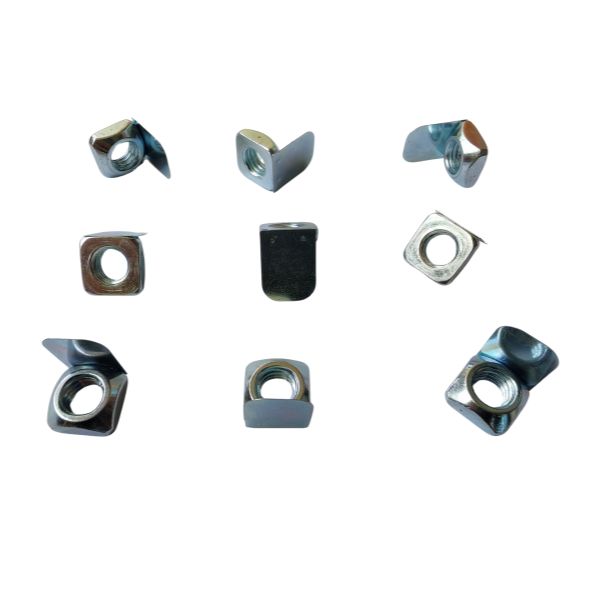

These nuts are commonly made from steel to ensure durability and strength. To enhance corrosion resistance and improve the aesthetic appeal, they often undergo surface treatments such as nickel plating.
Applications
Spring leaf nuts are used in a variety of applications where aluminum profiles are employed:
- Industrial Machinery: They are used to secure components in machinery frames and structures.
- Workstations and Displays: Commonly used in modular workstations and exhibition displays for adjustable configurations.
- Automated Systems: Employed in conveyors and other automated systems for adjustable support structures.
- Furniture and Fixtures: Utilized in furniture design for adjustable and modular components.
Installation Process
Installing spring leaf nuts is a straightforward process:
- Alignment: Align the T-slot on the extrusion with the path of the nut.
- Insertion: Push the nut into the slot, allowing the spring leaf to compress and the nut to slide into place.
- Seating: Once the nut is fully inserted, the spring leaf expands, securing the nut within the T-slot.
Advantages
Quick Assembly: Spring leaf nuts allow for rapid assembly and disassembly, saving time and effort.
- Adjustability: They provide adjustable positioning along the T-slot, offering flexibility in design and assembly.
- Reusability: The spring-loaded mechanism allows for multiple insertions and removals without loss of performance.
- High Retention: The spring leaf ensures a secure hold within the T-slot.
Variations and Standards
Spring leaf nuts are available in various sizes to fit different T-slot sizes and depths. They are designed to fit European standard aluminum profiles and are available for profiles with groove depths ranging from 8mm to suitable sizes for 4040 series T-slot aluminum profiles.
